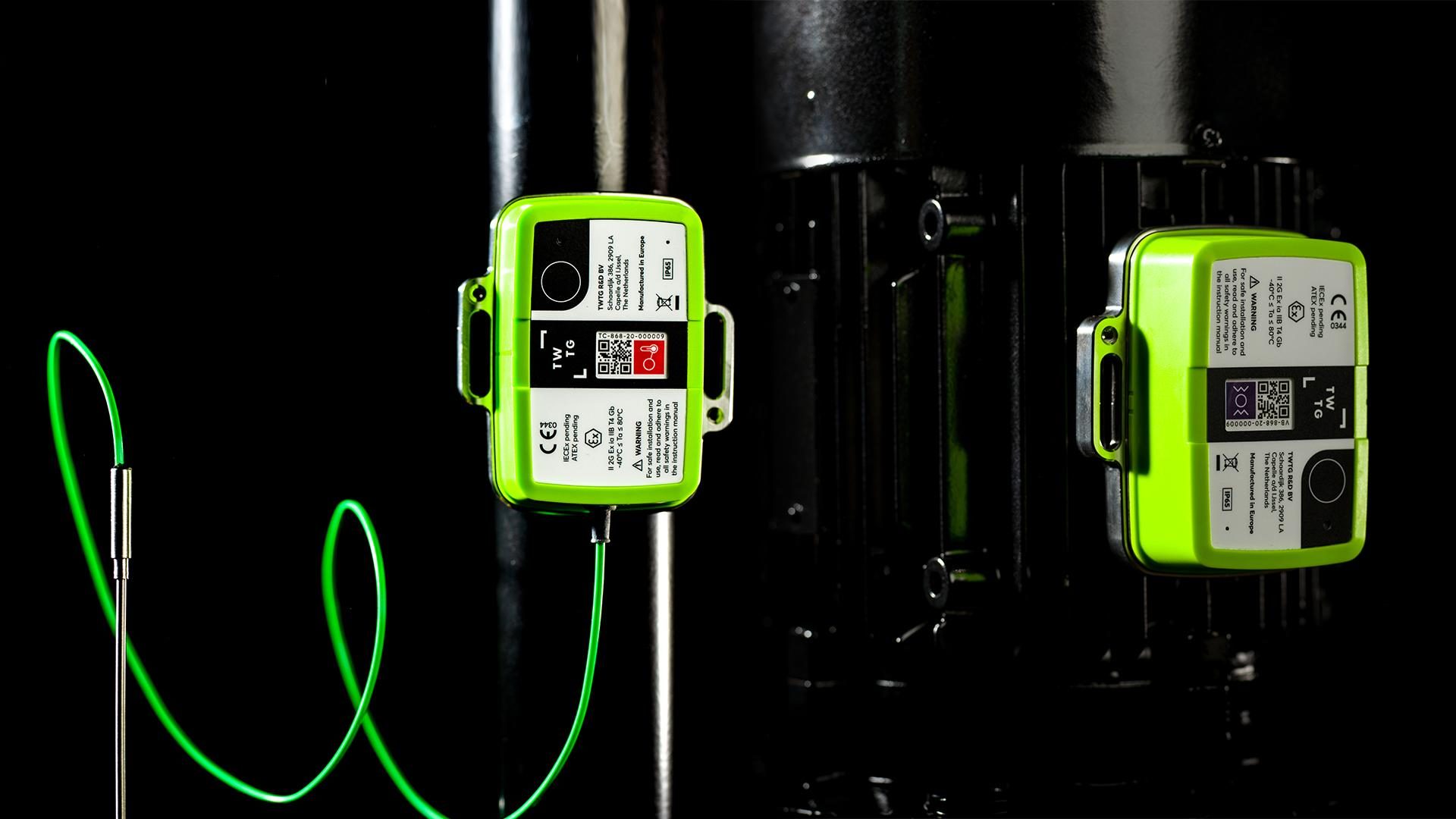

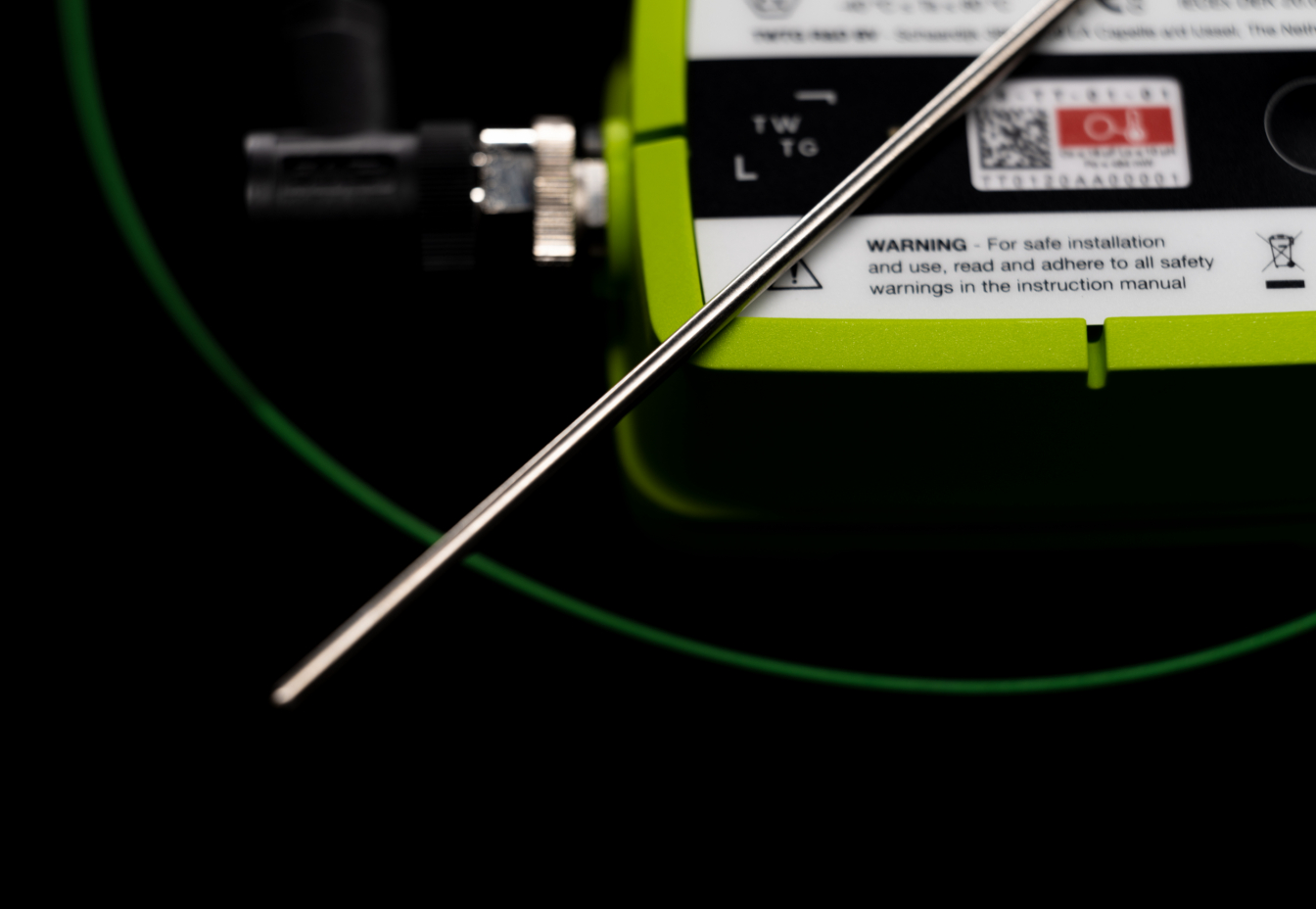

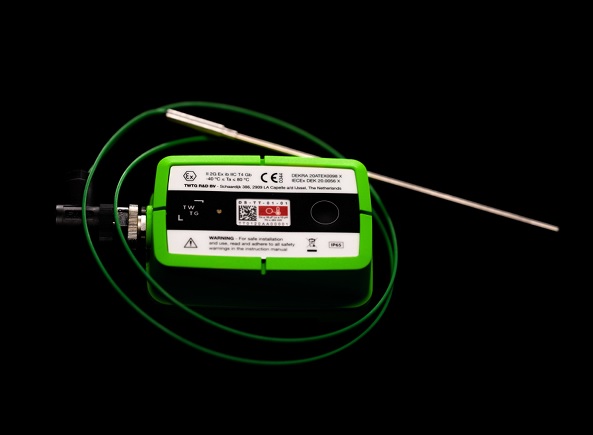

Knowledge is the basis of good decision making. TWTG NEON Temperature Transmitter is designed to be implemented within minutes and to transmit the signal for monitoring purposes by being connected to an industrial thermocouple or RTD. The device can be connected to a thermocouple via an M12 connector with an up to three meter long extension cable. It uses on-board intelligence to determine average values over user-determined time scales to provide insights that can be used directly within existing systems.

Thermocouple probe (Type K, other types on request) compatible

RTD (Pt100) compatible

-270°C to 2,300°C (-454°F to 4172°F) depending on the type of thermocouple

100 x 70 x 45 mm (L x W x H)

-40°C to 80°C (-40°F to 176°F)

Zone 1 (Ex II 2G Ex ib IIC T4 Gb) IP-65 rated

LoRaWAN 868, 915 MHz**

**Compatible with international LoRaWAN standards (long-range, low power wide-area network)

10 years, >10 years battery life (at 25°C)*

*Depending on average ambient temperature and network quality
