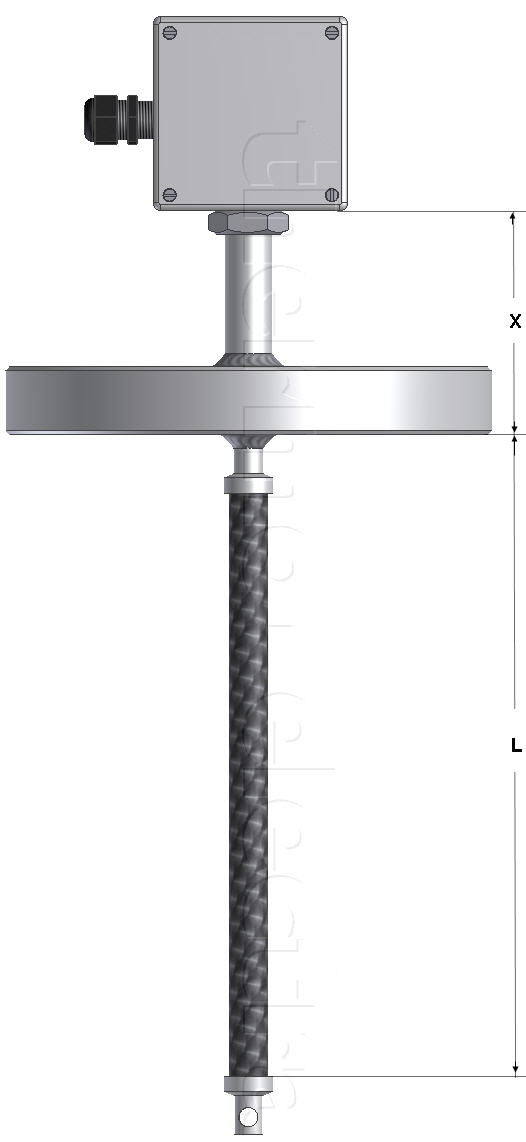

ML7080 Flexible multipoint temperature sensor for (bulk)storage

ML7080 Flexible multipoint temperature sensor for (bulk)storage

ML7080
true
Applications
Multi spot thermometer for bulk stored liquids, Food, Crude oil, Bitumen, Chemicals, Refined liquids
Temperature range
Max Operating temperature +105 ºC, intermittent up to +120 ºC
true
Protection tube
Construction
Flexible low pressure gastight metallic tube with smooth PVC coating, up to 2000 kg traction resistance
Armour
Internal braided armouring
Design
Dust tight, liquid tight
Tube diameter
Standard diameter 14mm, other diameters possible
Process connection
Welded flange, size to be specified
true
Connectionbox
Material
Polyester, aluminium or stainless steel
Head extension
Length to be specified
true
Sensors
Type
Wirewound precision Pt100 RTD detectors
Accuracy
Class B, A or AA according to IEC 60751
Vibration proof execution
true
Construction
Number of measuring points
L1 to Ln to specify
true
Options
3KG anchor weight, ATEX, IECEx, Transmitters, SS316 tube.

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

ML7080
Number of sensors

L1 to Ln in mm
