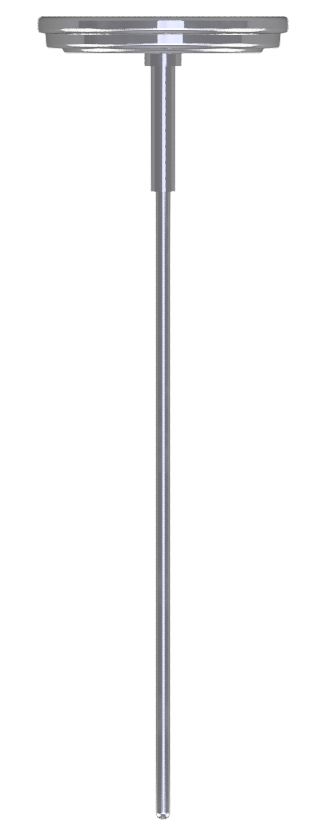

Back entry thermometer

Back entry thermometer

BE
true
Technical information
Execution
Bimetallic (BI) or Gasfilled (GF)
Case diameter
To be specified, standard 100 or 160mm
Case material
Stainless steel
Insert material
Stainless steel
Window
Instrument glass or laminated safety glass
Insert length
70x10mm (X) below case standard for mounting compression fitting
Length (L) to be specified according to thermowell or protection tube length
Diameter
6.0mm standard, other diameters possible
Accuracy
Class 1 according to EN 13190 (Case 100 mm and 160 mm)
Grade A (1 %) according to ASME B40.200 (Case 3“ and 5“)
true
Range
-50...50°C up to 0...500°C, to be specified
-80...120°F up to 200...1000°F, to be specified
We always supply with a 10-20° overrange. For example, your measurement range is +40/+120°C we will supply a dial with scale from +20/+140°C
Units
Available in °C or °F or with dual scale °C/°F
true
Options
ATEX certification
Calibration certificate
IP65/66/68 rating
Silicone liquid filling
External adjustment
Compressionfitting 1/2"NPT or 1/2"BSP (G1/2")

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

BE
Bimetallic (BI) or Gasfilled (GF)

Case size

Range in °C or °F

Insert length in mm

Insert diameter in mm
