CA 1005 Fast response thermocouple

CA 1005 Fast response thermocouple

CA 1005
true
Protection tube
Construction
Closed-end tube
Material
SS 316 - (Wst 1.4401) standard, other materials possible
Insertion length
Customer to specify
Process connection
1/2"BSP (G1/2"), 1/2"NPT, M20x1.5 or other threads possible
Extension length
Customer to specify
true
Connection head
Material
Aluminium, plastic or stainless steel
Cable entry
M20x1.5 cable gland standard, other threads possible
true
Measuring insert
Construction
Fixed
Tip
Reduced diameter
Stem diameter
9.0mm standard, other diameters possible
Tip diameter
6.0mm standard, other diameters possible
true
Thermocouple
Calibration
K, T, J, E, N, U or L
For duplex
KK, TT, JJ, EE, NN, UU or LL
Accuracy
According IEC 60584
true
Options
Transmitter 4-20mA
In-Head transmitter, standard or Ex version. Please select from our standard range or specify your own standard
Swing-Cover head
DAN, transmitter direct mounted on measuring insert
High Swing-Cover head
DAN-H, transmitter in cover, insert with ceramic block

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

CA 1005
Calibration

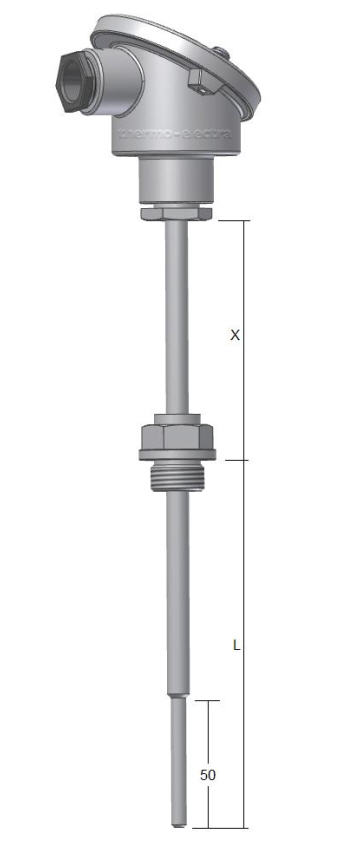

Insertion length "L" in mm

Extension length "X" in mm
