HT 4065 Thermal shock resistant thermocouple up to 1350°C

HT 4065 Thermal shock resistant thermocouple up to 1350°C

HT 4065
true
Protection tube
Construction
Gastight, thermal shock resistant
Insertion length
Customer to specify
Diameter
26x4.0mm
Material
SiSic Siliciumcarbide ( Halsic-I)
Temperature
1350°C maximum
Process connection
Sliding flange model MFA-C (showed), other executions possible for example a welded ANSI of DIN flange
true
Inner tube
Material
Gastight ceramic 710 (C799)
true
Connection head
Material
Aluminium or Stainless Steel
Cable entry
M20x1.5 standard, other threads possible
true
Extension
Material
Steel standard, other materials possible
Diameter
32mm standard, other diameters possible
Length
200mm standard, other lengtgs possible
true
Measuring insert
Insulation
Ceramic rod
Calibration
B, R or S
For duplex
BB, RR or SS
Wire size
0.35 or 0.5 mm Customer to specify
Accuracy
According IEC 60584-1
true
Options

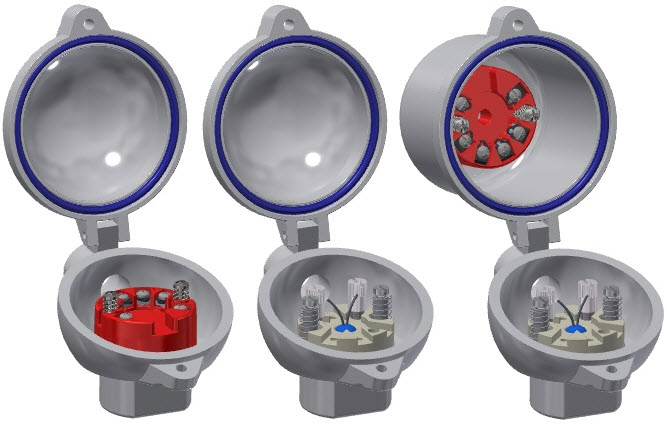

Swing-Cover head
DAN, transmitter direct mounted on measuring insert
High Swing-Cover head
DAN-H, transmitter in cover, insert with ceramic block

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

HT 4065
Calibration

Length "L" in mm

Wire size
