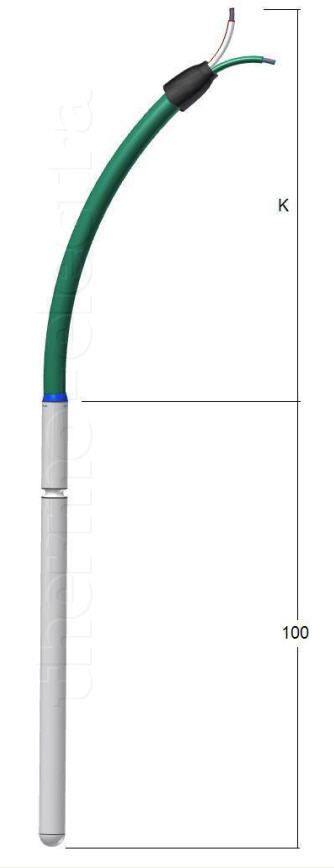

KE 1082 General purpose thermocouple with cable

KE 1082 General purpose thermocouple with cable

KE 1082
true
Sheath
Construction
Closed-end tube
Material
SS 316 - (Wst 1.4401) Also available in SS310, Inconel 600, Hasteloy X and Nicrosil D
Diameter
6.0mm standard, other diameters possible
Length
100mm standard, other lengths possible
true
Lead wire
Transition
Moisture resistant cable seal
Ingress protection
IP65 / IEC529
Thermocouple wire
PVC, PUR, PFA, FEP or specified by customer, thermocouple cable
Cable length
Customer to specify
true
Thermocouple
Calibration
K, T, J, E, N, U or L
For duplex
KK, TT, JJ, EE, NN, UU or LL
Accuracy
According IEC 60584
Hot junction
Insulated
Insulation test
Tested with 500 Vdc @ 20 °C
Insulation resistance
Minimum 100 M ohm
true
Options
Length
Other length possible
Diameter
Other diameter possible
Cable type
Other cable type possible

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

KE 1082
Calibration

Cable length "K" in mm
