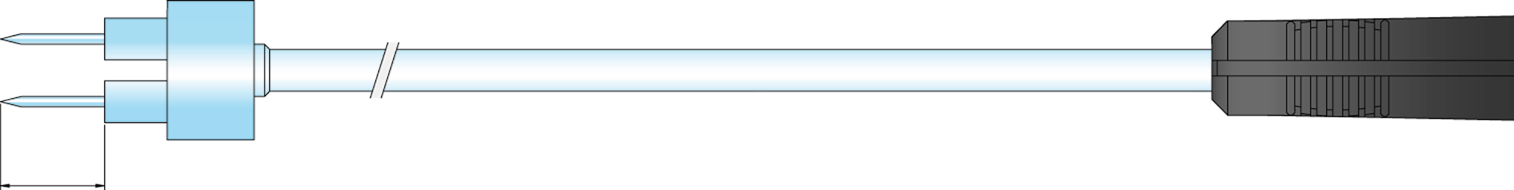

80514 Oberflächen-Thermoelementfühler aus Blech mit Kontaktstiften

80514 Oberflächen-Thermoelementfühler aus Blech mit Kontaktstiften

80514
true
General
Application
Area measurement on sheet metal
Measuring system
Solid thermocouple pins with sharp points
Handle
ABS plastic
true
Sensor
Thermocouple
Type K
Accuracy
According to IEC60584-1
Response time
2 seconds
Max. tip temperature
1260°C / 2300°F
Sensor pins
Solid thermocouple pins, replaceable
Pin diameter
3.0mm
true
Housing
Material
Stainless steel
Tip Length
50mm
Extension
500mm
true
Cable
Execution
Coiled cable
Material
Polyurethane insulated
Colour
Black (deviation from colourcode)
Connector
Miniature thermocouple connector (black), with flat pins
true
Options
Cable colour
IEC/ANSI
Connector colour
IEC/ANSI

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

80514
