HT 4030 High temperature thermocouple up to 1450°C

HT 4030 High temperature thermocouple up to 1450°C

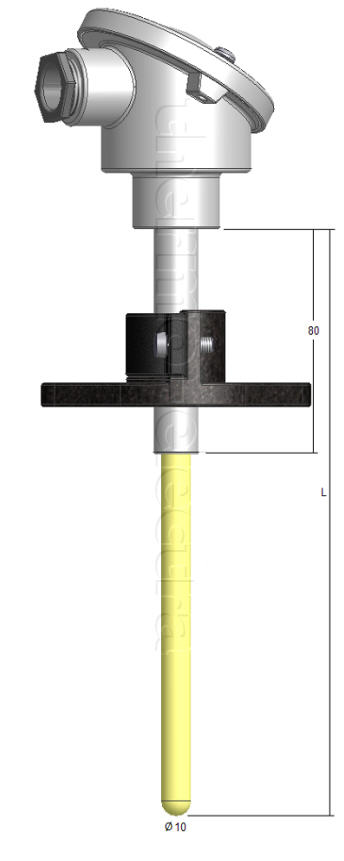

HT 4030
true
Protection tube
Construction
Gastight ceramic tube
Insertion length
Customer to specify
Diameter
10x2.0mm standard, other diameters possible
Material
Ceramic 610 (C610)
Temperature
1450°C maximum
Process connection
Sliding flange model MFA-A (showed), other executions possible for example a welded ANSI of DIN flange
true
Connection head
Material
Aluminium or stainless steel
Cable entry
M20x1.5 standard, other threads possible
true
Extension
Material
Steel or Stainless Steel
Length
80mm standard, other lengths possible
Diameter
15mm standard, other diameters possible
true
Measuring insert
Interchangeable
Yes
Insulation
Ceramic
Shape
Insulation rod, 2 or 4 holes
true
Thermocouple
Calibration
B, R or S
For duplex
BB, RR or SS
Wire size
0.35mm or 0.5mm
Accuracy
According IEC 60584-1
true
Options
Transmitter 4-20 mA
In-Head transmitter, standard or Ex version. Please select from our standard range or specify your own standard
Swing-Cover head
DAN, transmitter direct mounted on measuring insert
High Swing-Cover head
DAN-H, transmitter in cover, insert with ceramic block

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

HT 4030
Calibration

Length "L" in mm

Wire size
