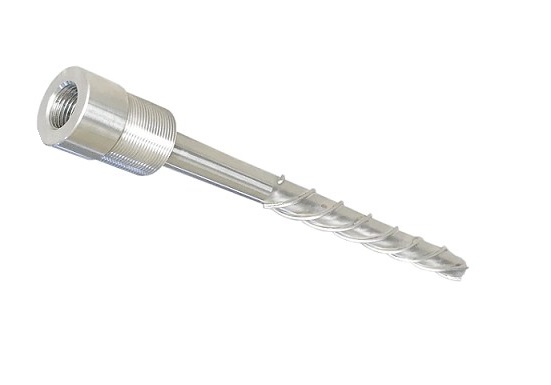

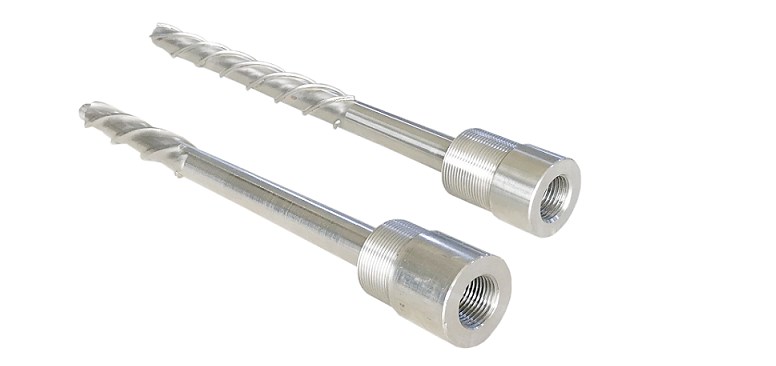

FT 3230 Threaded thermowell with Helical strikes

FT 3230 Threaded thermowell with Helical strikes

FT 3230
true
Design
Machined and drilled from bar stock with machined spiral finish. Reduces vibration and gives a better temperature reading with smaller tip diameters.
Final design according to:
ASME PTC19.3 TW2016
ASME Report nov. 2011, vol. 133/041102
Materials
SS316, SS310, SS321(H), SS347(H), Monel 400, Inconel 600, Hastelloy C276, Other materials possible
true
Insert / Stem
Diameter
Standard diameter 22 mm, or to be specified
Bore
6.6mm standard, other diameters possible
Bottom thickness
5.0mm standard, other thicknesses possible
Instrument connection
1/2"NPT, 1/2"BSP, M20x1.5 or other threads possible
Eccentricity
<1 micrometer
Conncetion length
Standard length
50 mm
Extended Hexagon
To specify
true
Female connection
Threaded
1/2"NPT, 1/2"BSP, M20x1.5 or other threads possible
Other thread size
To specify
true
Options
Other materials and dimensions
Plug and chain for test wells
Tagging
Radiographic test (X-ray)

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

FT 3230
PROCESS CONNECTION

"U" LENGTH IN MM

"X" LENGTH IN MM
