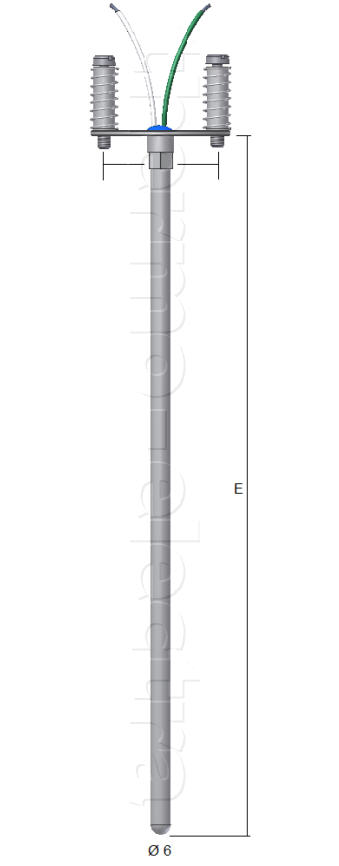

MI 1026 Thermocouple insert for temperature transmitter

MI 1026 Thermocouple insert for temperature transmitter

MI 1026
true
Sheath
Construction
Bendable mineral insulated thermocouple
Material
SS 316 - (Wst 1.4401) standard, other materials possible
Insertion length
Customer to specify
Diameter
6.0mm standard (3.0mm, 4.5mm, 6.4mm or 8.0mm optional)
true
Style / Connection
Application
For mounting a temperature transmitter
Construction
Springloaded according DIN 43735
Mounting
Pitch 33 mm
true
Lead wire
Wires
60 mm, insulated flexible wires
true
Thermocouple
Calibration
K, T, J, E, N, U or L
For duplex
KK, TT, JJ, EE NN, UU or LL
Accuracy
According IEC 60584
Insulation material
Mineral insulated ( MgO )
Hot junction
Insulated
Insulation test
Tested with 500 Vdc @ 20 °C
Insulation resistance
Minimum 100 M ohm
true
Options
Hot junction
Grounded hot junction
Diameter
Other sheath or tip diameter
Material
Other sheath material
Transmitter 4-20mA
In-Head transmitter, standard or Ex version. Please select from our standard range or specify your own standard

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

MI 1026
Calibration

Length "E" in mm
