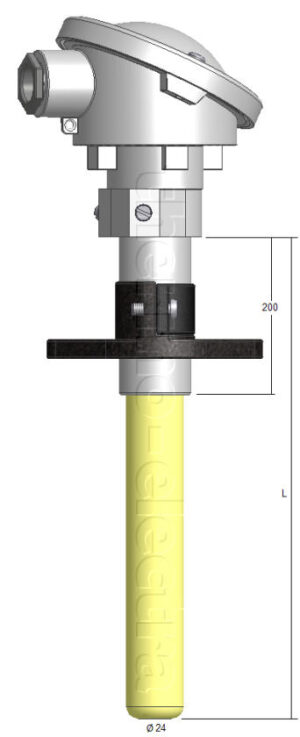

HT 4068 High temperature thermocouple up to 1800°C with Silicium Carbide (SiC) protection tube

HT 4068 High temperature thermocouple up to 1800°C with Silicium Carbide (SiC) protection tube

HT 4068
true
Protection tube
Construction
Gastight
Insertion length
Customer to specify
Diameter
26x4mm
Material
RSiC recristallized Siliciumcarbide ( Halsic-R)
Process connection
Sliding flange model MFA-C (showed), other executions possible for example a welded ANSI of DIN flange
Temperature range
1800°C maximum (0.5mm wires type B) 1600°C maximum (0.35mm type B wires or 0.5mm wires type R/S)1350°C maximum (0.35mm wires type R and S)
true
Inner tube
Inner tube
Gastight ceramic 710 (C799)
true
Connection head
Material
Aluminium or Stainless Steel
Cable entry
M20x1.5 standard, other threads possible
true
Extension
Material
Steel standard, other materials possible
Diameter
32mm standard, other diameters possible
Length
200mm standard, other lengths possible
true
Measuring insert
Insulation
Ceramic rod
Calibration
B, R or S
For duplex
BB, RR or SS
Wire size
0.35 or 0.5 mm
Accuracy
According IEC 60584-1
true
Options
Swing-Cover head
DAN, transmitter direct mounted on measuring insert
High Swing-Cover head
DAN-H, transmitter in cover, insert with ceramic block

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

HT 4068
Calibration

Lengte "L" in mm

Wire diameter
