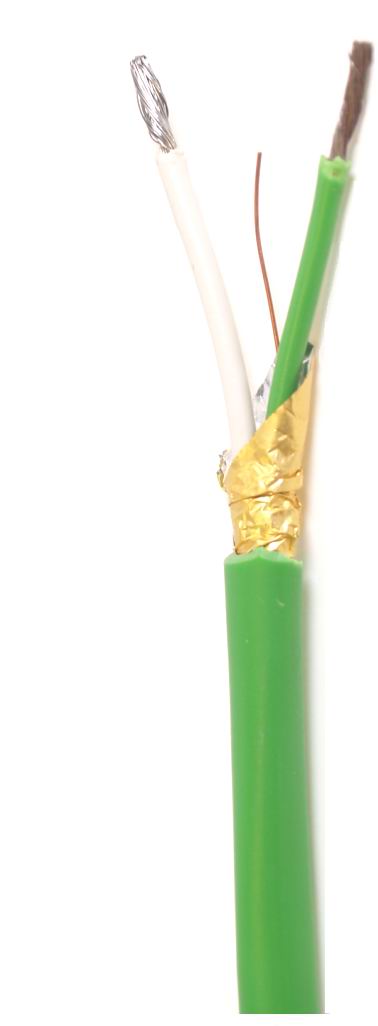

E70 Screened thermocouple extension cable -30°C to +85°C

E70 Screened thermocouple extension cable -30°C to +85°C

E70
true
Specifications
Insulation material
Each wire high quality extruded PVC
Electrical screen
Two layers of aluminium mylar tape with drain wire
Overall jacket
High quality extruded PVC
Shape
Round
Moisture resistance
Good
Flame resistance
Good
Temperature limits
-30/+85°C
true
Conductors
Conductor type
A) Solid or B) Stranded
Conductor size
Solid 1.3 mm,Stranded 1.5 mm² (48x0.2 mm)
Construction
Twisted pair
true
Calibration
Thermocouple type
K, T, J, E, U, L, N, B, R or S
Limits of error
Conforms to IEC 60584 and ANSI MC 96.1
Colour code
According thermocouple calibration IEC, ANSI, BS etc.

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

E70
Conductor type (A of B)

Calibration

Colourcode
