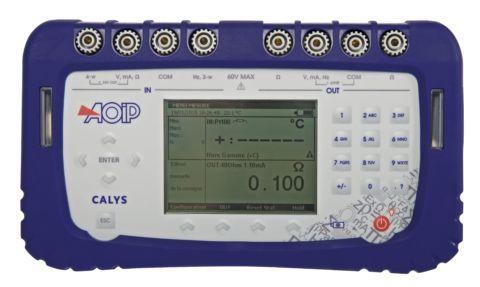

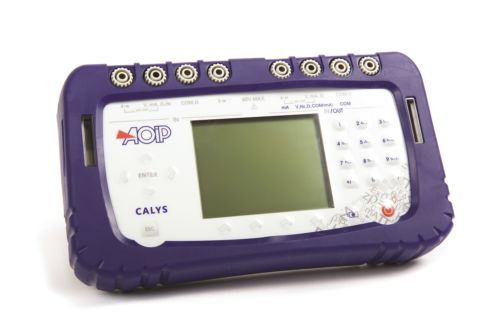

CALYS 50 is a basic multifunction calibrator within CALYS range. It is the perfect tool for advanced process maintenance and use on test bench in all industries. Suitable for all field and lab measurements, it can simultaneously measure and generate over two isolated channels various signals of temperature, resistance, process and frequency in one single instrument.

It provides extended functionalities (temperature simulation, scaling, steps, synthesizer, statistical functions…), easily accessible through quick menus by function.

Temperature: Up to 0,014% RDG

Resistance: Up to 0,012% RDG, 4 KΩ range

Current: Up to 0,0175% RDG, 50 mA range + 24 V loop supply

Voltage: Up to 0,013% RDG, 50 V IN / 20 V OUT range

Frequency: Up to 0,005% RDG, 20 KHz range (10 KHz in simulation)

Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, Cu10 or Cu50

K, T. J, E, R, S, U, B, L, C and N

0-50mA

100mV-50V

20kHz

400Ohm, resolution 1 mOhm

400Ohm, resolution 10 mOhm

0-24mA

100mV-20V

1000Hz-10kHz

40-4000Ohm

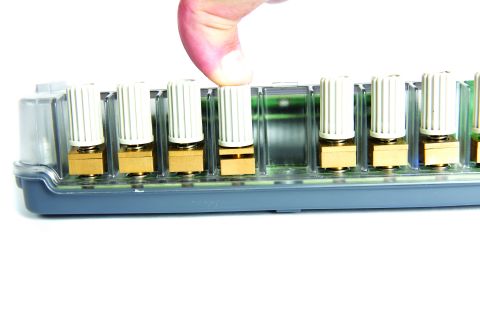

Connect your probes by simply pushing on the terminal top and insert wires of up to 3 mm or 10 AWG diameter and compensated thermocouple connectors.

Wires are held tight between two brass plates ensuring thermal stability and a very good cold junction compensation for thermocouples.

This system also enables 4 mm banana plugs and security connectors to be connected on the terminal top.

210 x 110 x 50 mm

900 g

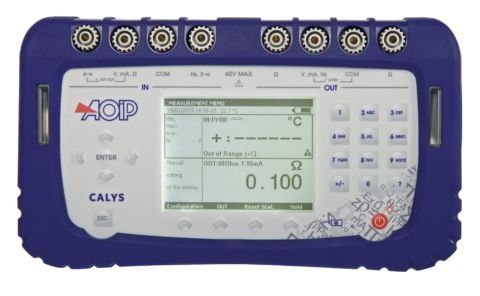

240 x 320 pixel liquid crystal graphical display with backlite and contrast control Display of result as table of values or trend curve

230 V ± 10 %, 50/60 Hz

Type: Lithium-ion, Charging Time: 3 hours, Lifetime: 8 hours

USB

23°C ± 5°C (RH: 45 to 75 % w/o condensing)

-10 to 50°C (RH: 20 to 80 % w/o condensing)

-15°C to +55°C (RH: 10 to 80 % w/o condensing) (70% at 55°C)

-30°C to +60°C

0 to 2000 m

IP54 according to EN60529

User manual

Battery charger

Set of 6 testing leads

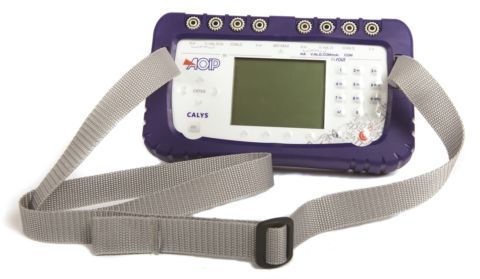

Carrying strap

Factory test report
