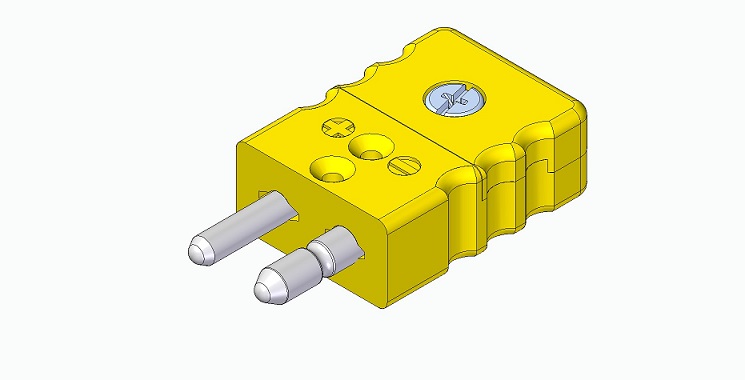

TE1065 Standard plug

TE1065 Standard plug

TE 1065
true
Application
Connector
Connector for thermocouple and RTD circuits. Pin design ensures good contact even in demanding applications
true
Construction
Temperature limit
Maximum 220°C
Design
Rugged one body design, with central cover screw for quick wiring
Body material
Glass filled high quality thermoplastic body with original thermocouple material pins and springloaded inserts.
Pins
Polarized pins ensure proper connection
Molded barriers
Prevent short circuit
Termination
Stainless Steel screws with Phillips head
Wire size
Accepts wires up to 1.6mm
Maximum cable diameter 8.0mm
Colourcode
Available in all color code standards incl. NFE, BS, JIS, etc

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

TE 1065
Type J,T,K,N,E,S,R,Cu or C
Calibration
Colour code
