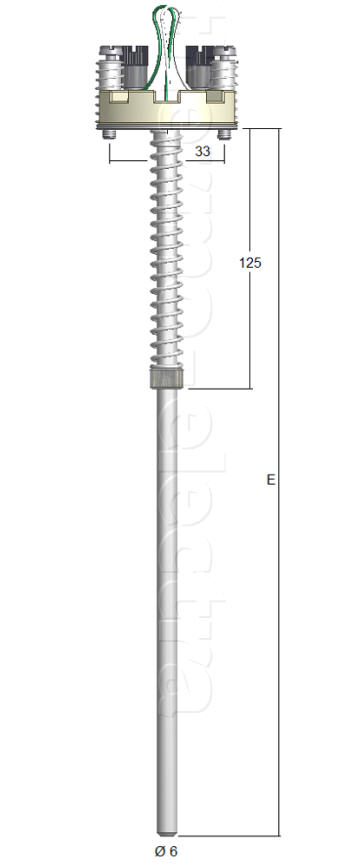

MI 1027 Spring loaded thermocouple insert

MI 1027 Spring loaded thermocouple insert

MI 1027
true
Sheath
Construction
Bendable mineral insulated thermocouple
Material
SS 316 - (Wst 1.4401) standard, other materials possible
Insertion length
Customer to specify
Diameter
6.0mm standard (3.0mm, 4.5mm, 6.4mm or 8.0mm optional)
true
Style / Connection
Terminal block
DIN standard size
Electrical
Cap type screws
Construction
Springloaded > 40 mm
Central spring
Diameter 11 mm
Mounting
Pitch 33 mm
true
Thermocouple
Calibration
K, T, J, E, N, U or L
For duplex
KK, TT, JJ, EE, NN, UU or LL
Accuracy
According IEC 60584
Insulation material
Mineral insulated ( MgO )
Hot junction
Insulated
Insulation test
Tested with 500 Vdc @ 20 °C
Insulation resistance
Minimum 100 M ohm
true
Options
Hot junction
Grounded hot junction
Diameter
Other diameters
Material
Sheath material

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

MI 1027
Calibration

Length "E" in mm
