DD 3030 Socket weld thermowell – straight

DD 3030 Socket weld thermowell – straight

DD 3030
true
Thermowell
Design
Drilled bar stock (solid machined)
Process connection
Socket weld
Welding diameter
26.7mm, 33.4mm or 48.3mm
Material
SS 316 - (Wst1.4401)
true
Stem / Shaft
Wetted part
Straight
Diameter
To specify
Insertion length
To specify
Bore Size
6.5 mm standard
Excentricity
< 1 micrometer
Bottom thickness
5 mm
true
Connection length
Standard length
50mm
true
Female connection
Threaded
1/2"NPT, 1/2"BSP, M20x1.5 or other threads possible
true
Options
Other materials and dimensions
Plug and chain for test well
Protective coating, PTFE, Halar, Stellite etc.
Tagging
Wake frequency calculation

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

DD 3030
Diameter welding neck in mm

Insertion diameter in mm

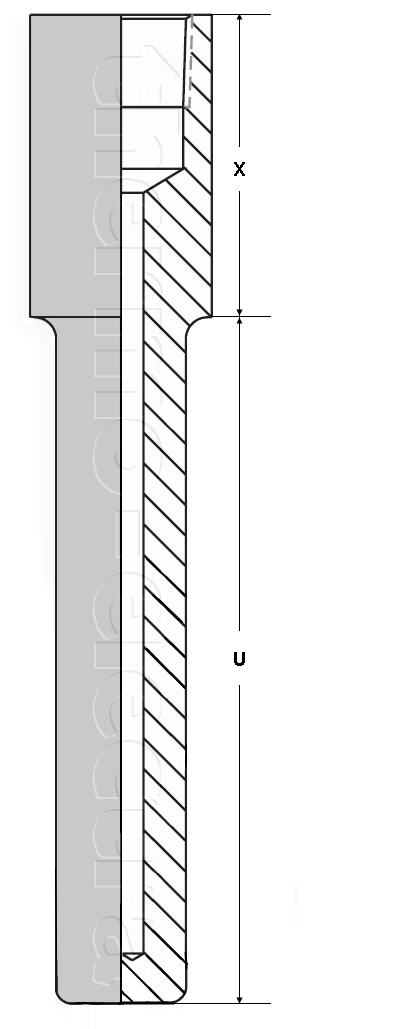

"U" length in mm

"X" length in mm
