ML7038F Multipoint catalyst bed reactor temperatuursensoren

ML7038F Multipoint catalyst bed reactor temperatuursensoren

ML7035
true
Application
Multipoint temperature sensor with fixed lengths measurement inserts. Sensors can be bend to follow the design of the reactor. This multipoint can be used for measurements in catalyst reactors or any other application where multi temperature measurement is needed.
true
Measuring system
Measuring point
Each sensor mineral insulated
Sensor type
Thermocouple
Construction
Bendable sensors to be installed as a grid within a reactor
true
Design
Sensor diameter
1.5, 3.0, 4.5, 4.8, 6.0, 6.35mm
Type
Mineral insulated ( MI) cable
Sheath material
Customer to specify (SS316, SS321, SS347, Inconel 600 or other materials possible)
Length L1 to Ln
Customer to specify, up to 100meters is possible
true
Sensors
Thermocouple
Type K, T, J, E or N
Hot junction
Grounded or ungrounded
true
Sealing
Feedthrough
Up to 22 sensors suitable for 3" nozzle entries
Systems
Sealing with Conax feedthroughs
Sealing with standard or Swagelok compression fittings
Sealing by means of vacuum nickel-gold brazing
true
Mounting hardware

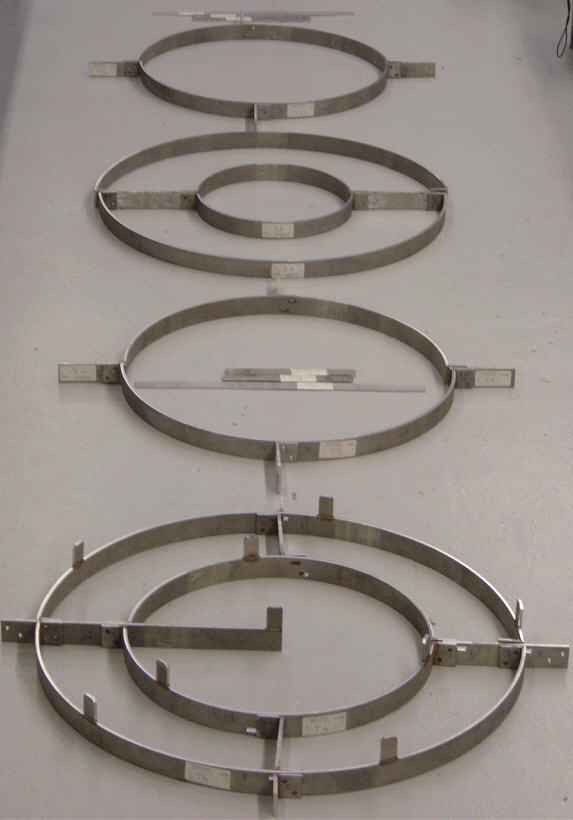

Rings and Frames
Optional available
Materials
All stainless steels and high nickel alloys possible
true
Options
Containment/pressure chamber between flange and junctionbox
optionally executed with manifold and pressure indicator

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

ML7035
