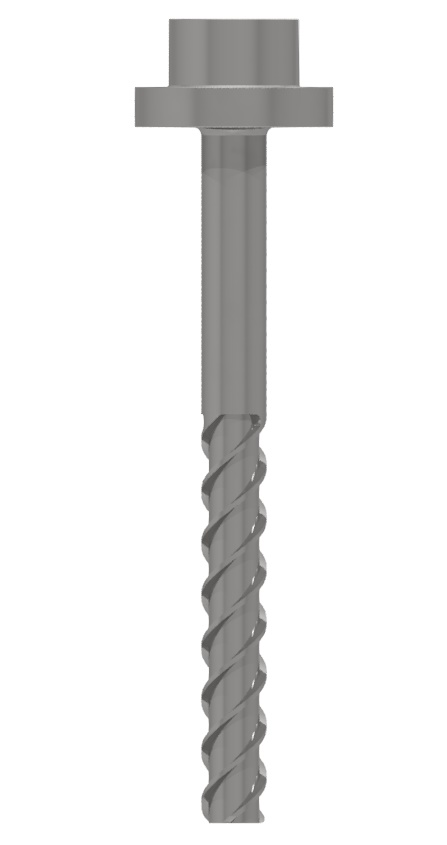

FT 3265 Van Stone thermowell with Helical strikes

FT 3265 Van Stone thermowell with Helical strikes

FT3265
true
Thermowell
Design

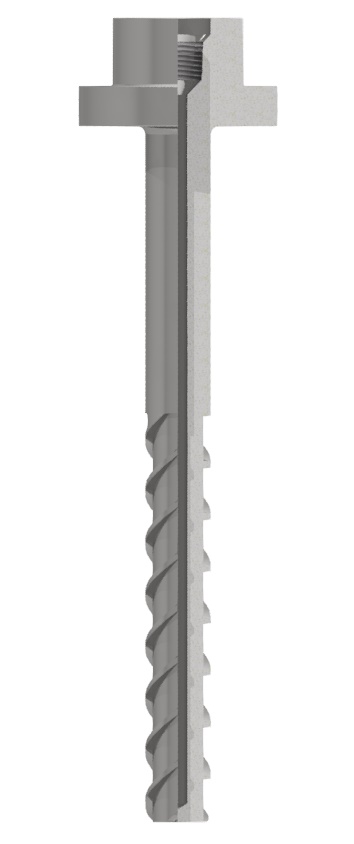

Machined and drilled from bar stock with machined spiral finish. Reduces vibration and gives a better temperature reading with smaller tip diameters.
Final design according to:
ASME PTC19.3 TW2016
ASME Report nov. 2011, vol. 133/041102
Materials
SS316, SS310, SS321(H), SS347(H), Monel 400, Inconel 600, Hastelloy C276
true
Insert/Stem
Straight
Standard diameter 22 mm, or to be specified
Conical
Diameter from 25 to 20 mm at the tip, or to be specified
Stepped
20 mm, reduced point L=78mm x d=12 mm
Flange connection
Lap joint flange, to be specified according to thermowell diameters
Bore
6.6mm standard, other diameters possible
Bottom thickness
5.0mm standard, other thicknesses possible
true
Options
Protective coatings such as HALAR, PFA, Ruby Red
Radiographic test (X-ray)
Also possible as our standard FT3060 thermowell with welded flange

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

FT3265
Flange 1" / DN25, 1.1/2" / DN40 or 2" / DN50

Length in mm

Material
