FT 3025 Geflensde thermowell – conisch volgens DIN 43772 model 4F

FT 3025 Geflensde thermowell – conisch volgens DIN 43772 model 4F

FT 3025
Full Penetration gelaste flens
true
Thermowell
Ontwerp
Geboord uit volstaf met gelaste procesflens
Materialen
RVS 316 - (Wst 1.4401) standaard
true
Insteek
Diameter
Conisch van 24mm tot 12,5 mm bij de tip
Boring
7mm.
Bodem dikte
5 mm
Inwendige aansluiting
M18 x 1.5
true
Flens
Flens facing
Flat Face, Raised Face, Ring Type Joint, Tongue Face, of Groove Face
Normen
ASME B16.5, DIN 2526/2527, of EN 1092-1
Flens las
Standaard, of optioneel FP gelast
true

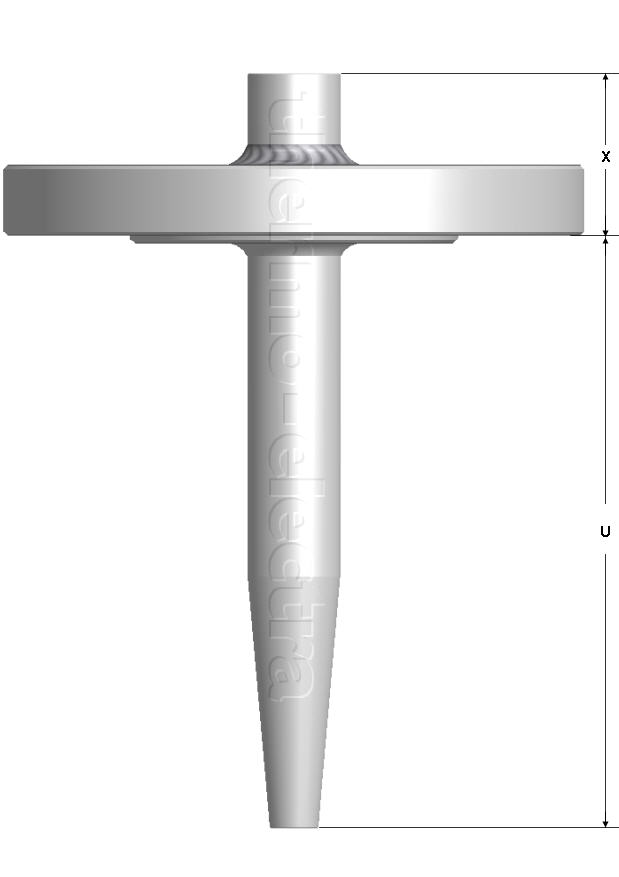

Afmetingen
Insteek lengte "U"
Te specificeren
Verlenging "X"
Te specificeren, standaard 60mm
Flensmaat
Te specificeren
Druk klasse
Te specificeren
Flens facing
Te specificeren
true
Opties
Andere materialen en afmetingen
Din 43772 Vorm 4FS, boring 3.5mm, M14x1.5
Diameter van 18mm tot 9mm aan de tip
Tagging
Vibratie calculatie berekening

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

FT 3025
"U" lengte in mm

"X" lengte in mm

Flensmaat

Druk klasse

Flens facing
