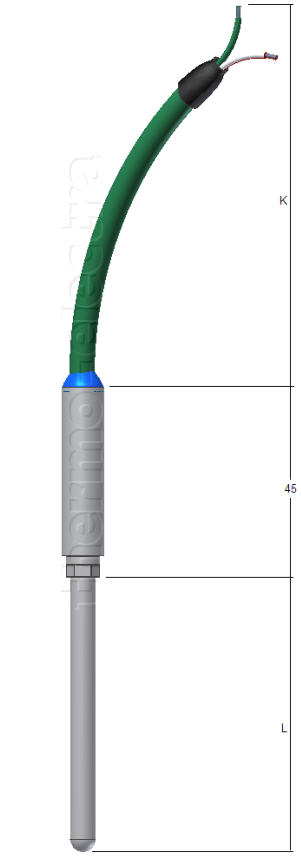

LEX55 Ex ca certified thermocouple for zone 2 and 22

LEX55 Ex ca certified thermocouple for zone 2 and 22

LEX55
true
Construction
ATEX execution
II 3 G Ex ca IIC T6...T1 Gc
ATEX certificate
DEKRA 18ATEX0024 X
IECEx execution
Ex ce IIC T6...T1 Gc
IECEx certificate
IECEx DEK 17.0046X
Note
The LEX55 is the replacement for the LEX45 Ex nA
Suitable for zone
2 and 22
Ingress protection
IP65 / IEC529
Ambient temp. range
-45°C...+80°C, this can be limited depending on the materials applied such as cables, connection heads, junction boxes and transmitters.
true
Sheath
Construction
Mineral insulated ( MgO )
Material
SS316 standard, other materials possible
Diameter
Customer to specify (0.25-12.7mm)
Length
Customer to specify
true
Hot junction
Isolated
true
Sealpot
Length
45mm
Diameter
To suit cable diameter
true
Thermocouple
Calibration
K, T, J, E, N, R, S, B, U or L
For duplex
KK, TT, JJ, EE, NN, RR, SS, BB, UU or LL
Accuracy
According to 60584-1
true
Lead wire
Type of cable
PVC standard
Option
PUR, Silicon or PTFE insulated cable
Cable length
Customer to specify
true
Datasheet notification
true
This datasheet is purely indicative, build-up of model code may vary from this datasheet

Customisation possibilities

You can remark the customisation in your quote

PRODUCTCODE

LEX55
Thermocouple calibration

Colourcode

Diameter in mm

Length "L" in mm

Length "K" in mm
